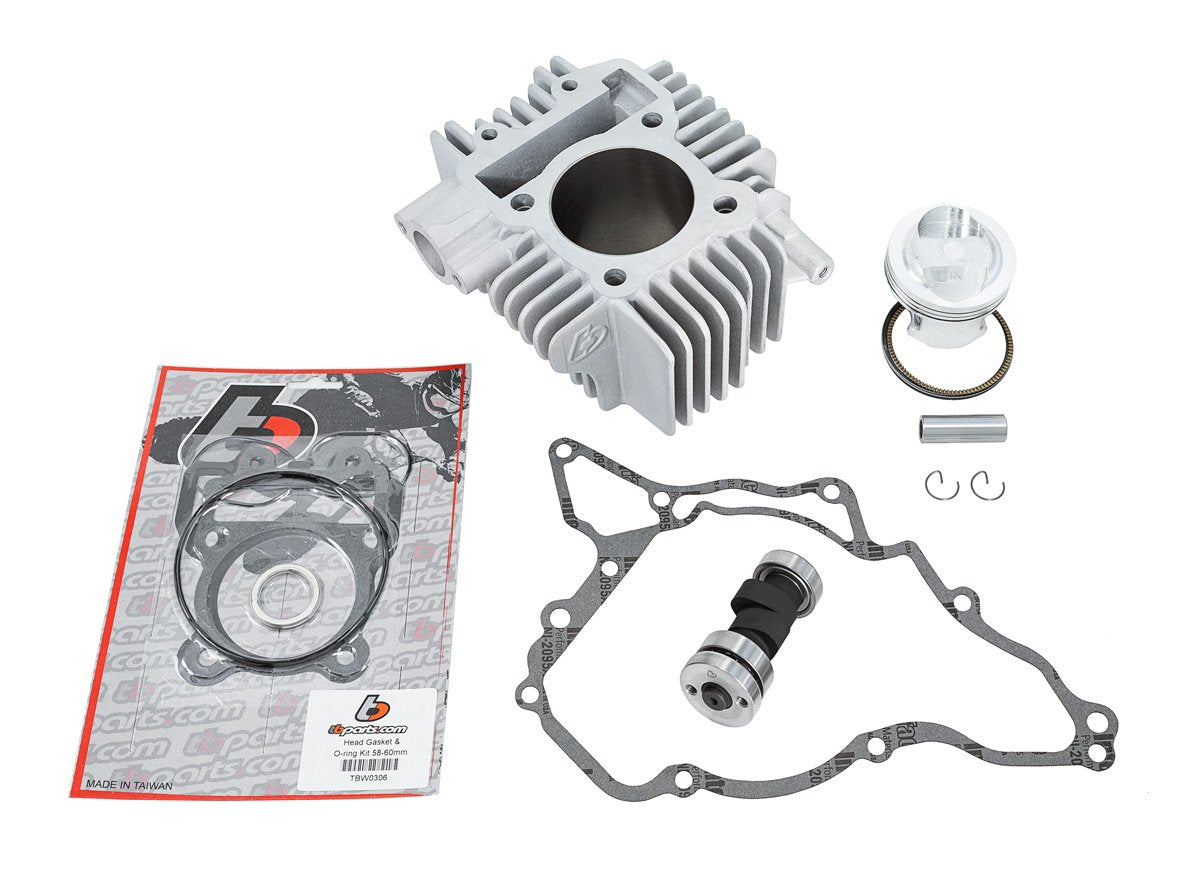

TB 143cc Bore Kit & Performance Camshaft – KLX110 2003-09 Models

TBparts 143cc big bore kit with our NEW bolt on performance camshaft. The combination of these parts amplify the results! The cam opens up the valves more so the larger bore kit can breathe better resulting in even more power throughout the power curve! You will not believe the night and day difference this setup makes over the stock engine! The all aluminum ceramic coated cylinder is lighter than a steel sleeved aluminum cylinder, reduces friction (increasing power), improves sealing, and provides better heat transfer (runs and cools down quicker). The domed high compression piston (10.9:1 pump gas friendly) and complete head gasket kit set this kit apart from other similarly priced 143 kits on the market. Our camshaft grind has years of R&D built into it too. Gains are 20% over stock throughout the RPM range unlike most other cams that shave power off the bottom end to move it all up-top. Not to mention this camshaft is brand new, not a regrind, and includes brand new Taiwan TPI bearings made to OEM specifications. This is an affordable way to make your KLX110 or DRZ110 engine race ready and a lot more fun to ride! High quality parts and requires no machining to the cases or other modifications – bolt on and go!

Features:

• Ceramic coated all aluminum cylinder (no steel sleeve)
• Lightweight high compression domed 60mm piston with rings, pin, & clips for the stock cylinder head
• 10.9:1 compression safe for use with pump fuel.
• Head gasket kit – Now includes the cylinder head o-ring set and an exhaust gasket
• Huge power gains
• Brand new camshaft and bearings
• Complete bolt on engine kit

There are no installation instructions, but if you can replace your piston, you can install this kit. If you don’t have any experience working on your engine, we highly recommend having a professional technician install this kit or, at a minimum, purchasing the shop manual for your bike available from your local Kawasaki or Suzuki dealer.  The parts are installed in the same manner as the OEM parts.

Note – This is bolt on for 2003-2009 KLX110s. Camshaft is for use with the stock cylinder head. Carburetor tuning will be required for optimal performance, +1 size up on the pilot jet and +2 sizes up on the main jet is a good starting point.

Kit contains: TBW0305, TBW306, TBW0377, TBW0378, and TBW1431
