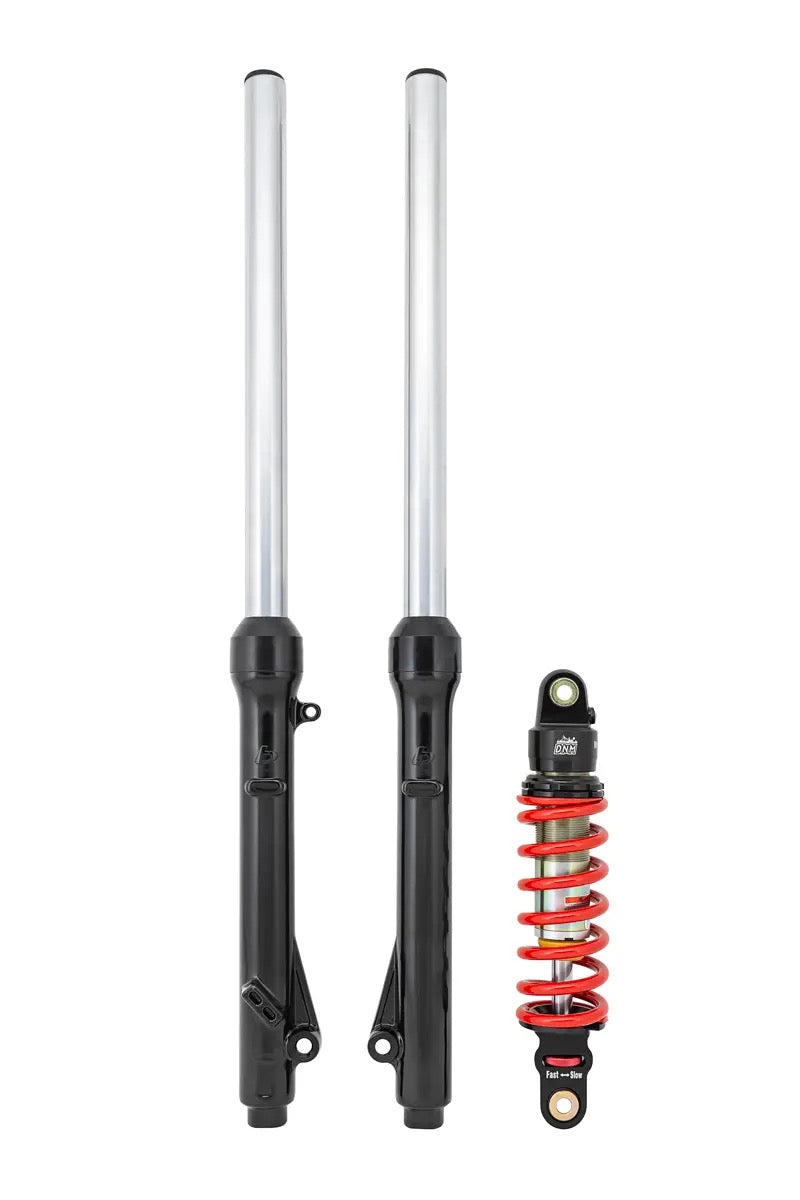

TB parts suspension package #4 includes extended KLX110L forks and a KLX110 250# DNM rear shock. Please note – the forks in this kit are about 2.5″ longer than standard KLX110 forks.

TB Fork Assembly Set

TBparts Fork Assembly Set for the KLX110L offered here for the KLX110 non L. Our replacement fork set is a bargain considering OEM replacements are over $600 for a set! They also feature a few key upgrades over the factory forks making them better suited for your MX mini! Starting out are the looks, ours come gloss black and have our TB logo cast into them. Next, adding to the performance is the heavier weighted springs inside that are better suited for adult riders. Going down the list next is the dampening rods. They have been ported to match the heavier springs giving you improved dampening and rebound to keep the front end from becoming a “pogo” stick. It is also lengthened giving you an extra +10mm of travel!

Finally, we intergraded an OEM style bushing/guide inside the fork bottom for added strength that the original Kawasaki KLX110L forks do not have. Altogether you cannot beat the “out of the box” performance and value this complete fork set offers.

Key Features:

• HD springs better suited for adult riders
• Improved dampening rod for better dampening and rebound
• Extended Travel
• Strengthened with extra bushings
• Gloss black fork bottom with TB logo cast in

DNM Rear Shock, 250LB – KLX110

Improve your ride and handling with these high quality shocks. DNM has been an integrated part of the suspension industry for more than 40 years. Their goal has always been to supply OEM and the aftermarket with high performance suspension technology at an affordable price.  This rear shock set is from their MK-AR series and consists of the following features:

• Preload and Rebound Adjustments
• 250lb Spring rate great for adults under 165lbs (If your a very aggressive rider you may need the larger 300 or 350LB spring for hitting larger jumps)
• Nitrogen Charged Oil Damping
• Hard chromed steel 14mm damper shaft
• High quality surface finish
• 270mm For KLX110
• TB Red Color Spring

Installations notes:

• These come with 15wt fork oil, if desired you can drain and refill with 5.5oz of your choice of quality fork oil
• Replacement fork seals TBW1615
• These are not a direct replacement for the Standard KLX110 they are about 2.5″ longer.

Includes TBW1588 and TBW1201
