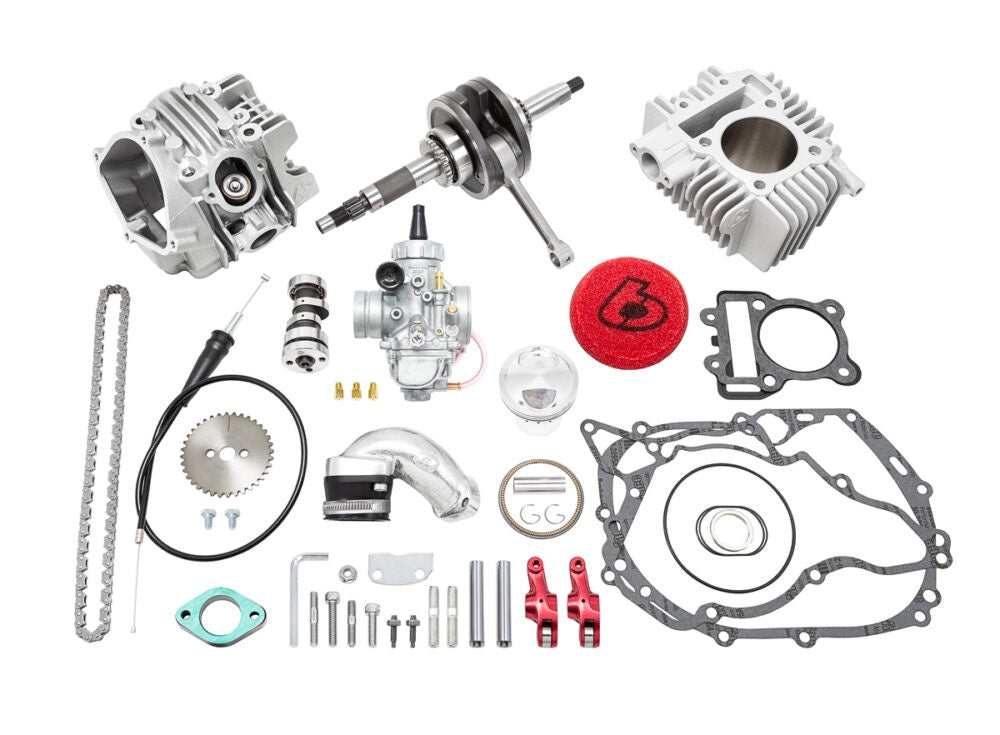

TB parts NEW 155cc, Forged Piston big bore stroker kits! Our V2 143cc big bore kit combined with the 55mm stroker crank for the best deal possible!
All 2003+ year Models!
TBparts V2 Race Head: Starting with the addition of forged aluminum roller rocker arms and our V2-1 camshaft. Not only do the aluminum roller rockers free up big horsepower, but you can also run much more aggressive cam profiles with roller rockers for even more power. Next is the bigger valves 30mm intake and 24.5mm Exhaust. The intake and exhaust ports are equally as improved at 27/23mm. Both valves are stainless steel too (21-4N material). The valves also come installed, complete with high lift heavy duty valve springs.
TBparts 60mm 143cc Big Bore Kit: An all aluminum ceramic coated cylinder. No case boring required, bolt on! This cylinder is lighter than a steel sleeved aluminum cylinder, reduces friction (increasing power), improves sealing, and provides better heat transfer (runs and cools down quicker). Forged, high compression 12.09:1 (when combined with the V2 Head and crank in this kit) domed 60mm piston comes with rings, pin, & clips (will safely run on pump gas, 90-93 octane). Top end gaskets are also included.
Mikuni VM26 with TBparts manifold/carb kit: It is hard to beat the consistency and performance of the VM26. Paired with our larger intake manifold for the V2 race head. This will give you some of the best throttle response and consistent reliable power on the market! We also include a low profile air filter and extended throttle cable for the KLX110.
55mm Stroker Crankshaft Kit: There is no replacement for displacement! Increase your displacement, torque, and power by replacing your stock crankshaft with this one. The kit also includes a new cam sprocket and DID Cam Chain. No modifications are needed. All necessary gaskets included.
Case splitting required: If you don’t have experience working on your engine, we highly recommend having a professional technician install this kit or, at a minimum, purchasing the shop manual for your bike available from your local Kawasaki or Suzuki dealer. Installing a crankshaft requires delicate technique.
Note 1 – If you have an 07 or older model with the original OEM Output Shaft we highly recommend also purchasing the strengthened Output Shaft. The 02 thru 07 Output Shafts were very weak and would often snap. They have a oil hole drilled straight through the shaft at the opposite end of the sprocket, so best to update while you have the engine apart.
Note 2 – We also recommend the TB heavy duty clutch plate kit TBW1035, for best results convert to full manual.
There are no installation instructions, but if you can replace your piston, you can install this kit. If you don’t have any experience working on your engine, we highly recommend having a professional technician install this kit or, at a minimum, purchasing the shop manual for your bike available from your local Kawasaki or Suzuki dealer. The parts are installed in the same manner as the OEM parts.
Includes: TBW0321, TBW0362, TBW0399, TBW0477, TBW0378, TBW0700, TBW1125, TBW1579, TBW0306, TBW0305, TBW0645, TBW0459, TBW0473, TBW0360
