Upgrade your Honda CRF110F with the ultimate combination of strength, stability, and suspension performance. The TBparts +2″ Swingarm is engineered from high-strength forged aluminum to deliver exceptional durability, improved traction, and increased straight-line stability while giving your bike the aggressive stance riders want.

Choose from multiple swingarm colors, hardware package options, and DNM rear shock combinations to build the setup that best fits your riding style and weight.

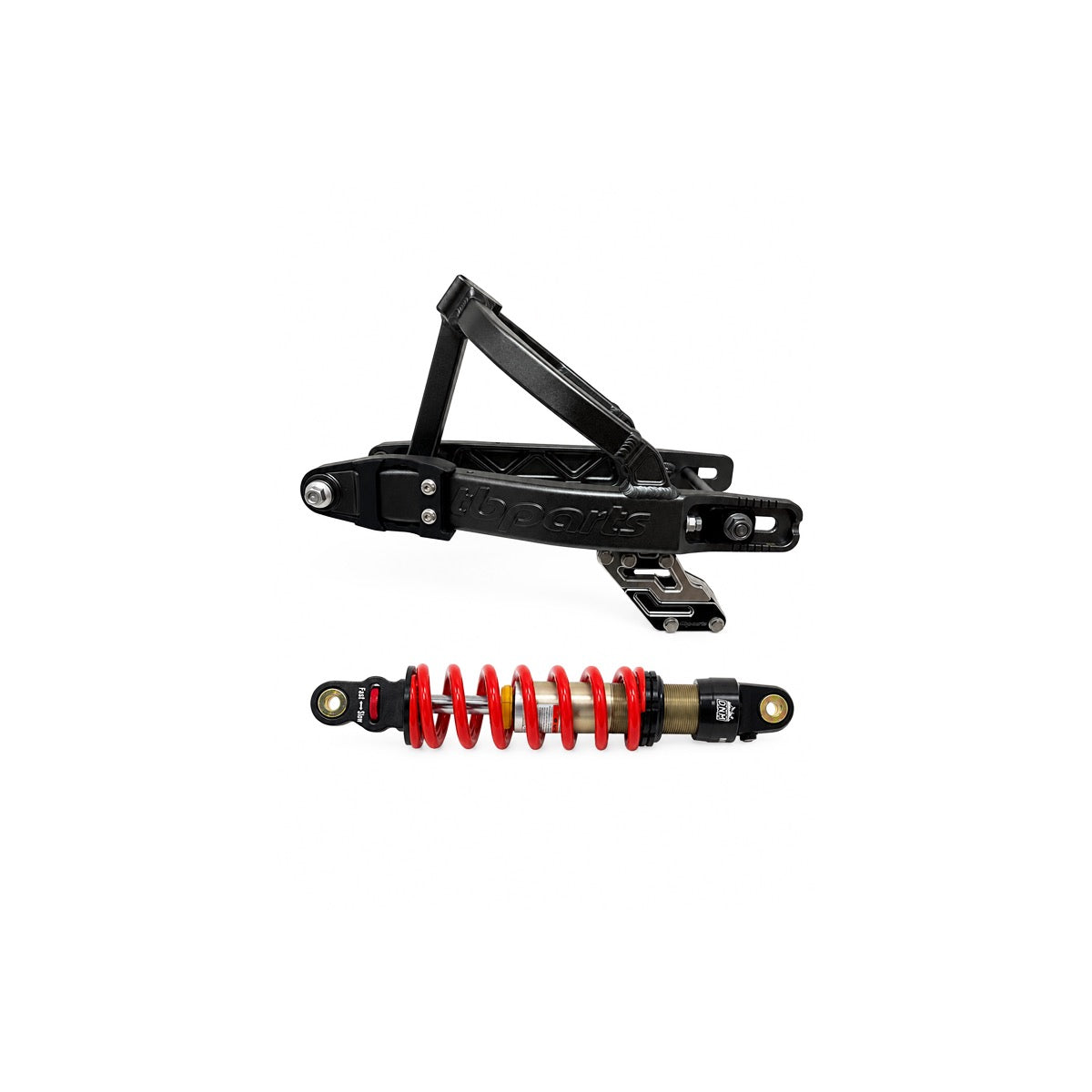

*This listing is for the Black swingarm KIT with 290 mm 250lb rear shock - other options are shown below - see separate listings for other colors/shock weights.

Swingarm Features:

• High-strength forged aluminum construction
• Adds +2″ of wheelbase for improved stability and rear tire traction
• Precision pegged and indexed before welding for maximum strength and alignment
• Heavy-duty design built to withstand aggressive riding
• Helps reduce front wheel lift under acceleration
• Direct bolt-on installation
• Available in Black, Gray, or Silver finishes

Swingarm Includes:

• TBparts +2″ Swingarm
• Complete installation hardware
• Axle bolt
• Axle blocks
• Axle block adjuster bolts
• Swingarm pivot bolt
• Shock mounting bolt
• Small & tall shock blocks
• Chain guard plate
• Installation Allen key

Additional items included in this swingarm kit  - over $100 value at no extra cost!

• TBW2101 Chain Guide
• TBW2167 Extended Brake Rod
• TBW2169 Axle Block Adjustment Wrench

DNM Rear Shock Upgrade:

Complete your suspension with a genuine DNM MK-AR rear shock built to TBparts specifications.

Unlike many aftermarket CRF110 shocks, these require no frame grinding or modification on 2019+ CRF110 models. Simply bolt it on and ride.

DNM Shock Features:

• Built to TBparts specifications
• Fits all Honda CRF110F model years
• No frame modifications required
• Nitrogen charged oil damping
• 14mm hard chromed steel damper shaft
• Adjustable preload
• Adjustable rebound damping
• High-quality finish and construction

Available Shock Options:

290mm DNM Shock

• 250 lb Spring
• 300 lb Spring
• 315 lb Spring
• 340 lb Spring
• 350 lb Spring

315mm DNM Shock

• 350 lb Spring

Important Notes:

• A longer chain is required when installing any +2″ swingarm.
• Recommended chains:
  • TBW1859
  • TBW1860
• For maximum drivetrain performance, pair your swingarm with a TBparts Billet CNC Rear Sprocket and TBparts Steel Front Sprocket.

Fitment:

Honda CRF110F (All Years)
